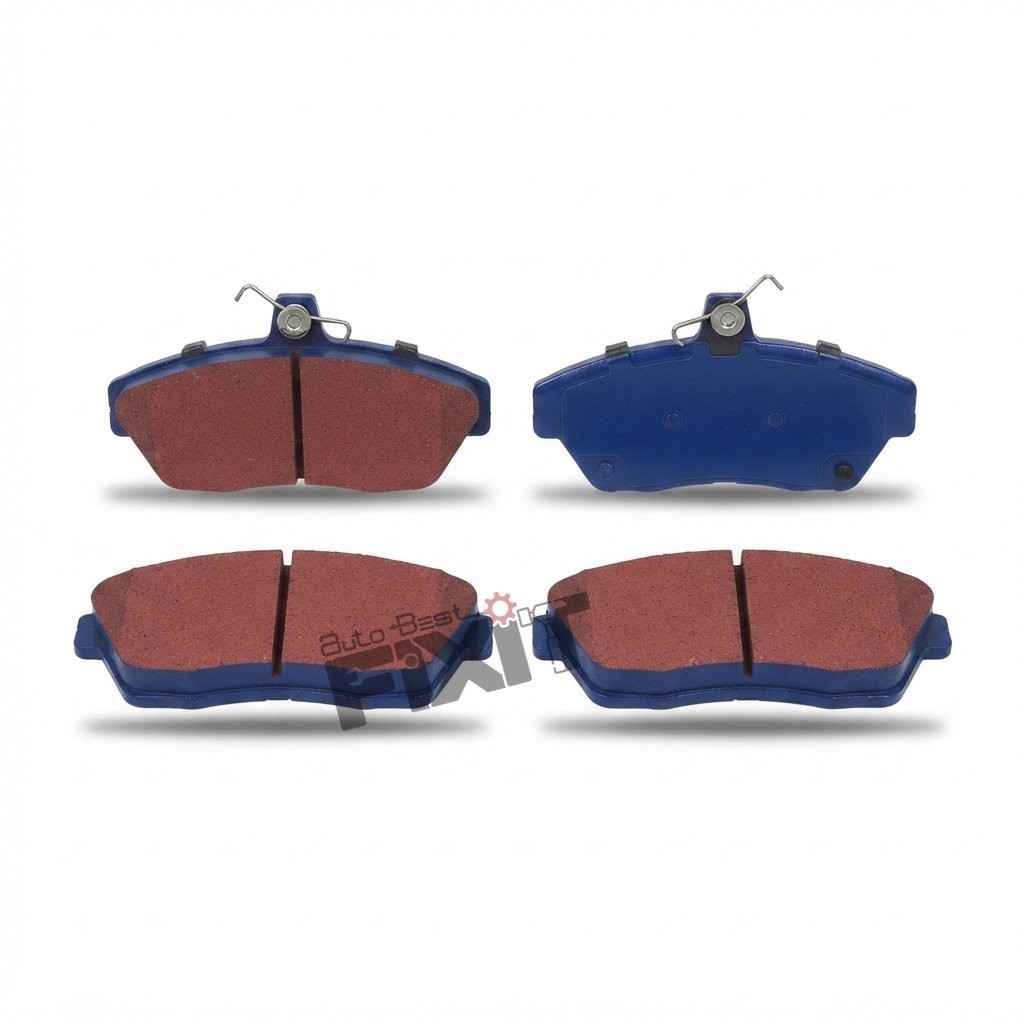

Bosch Mahindra Bolero & Bolero Pik-Up Front Brake Pads 1994-2026 F002H241688F8_1

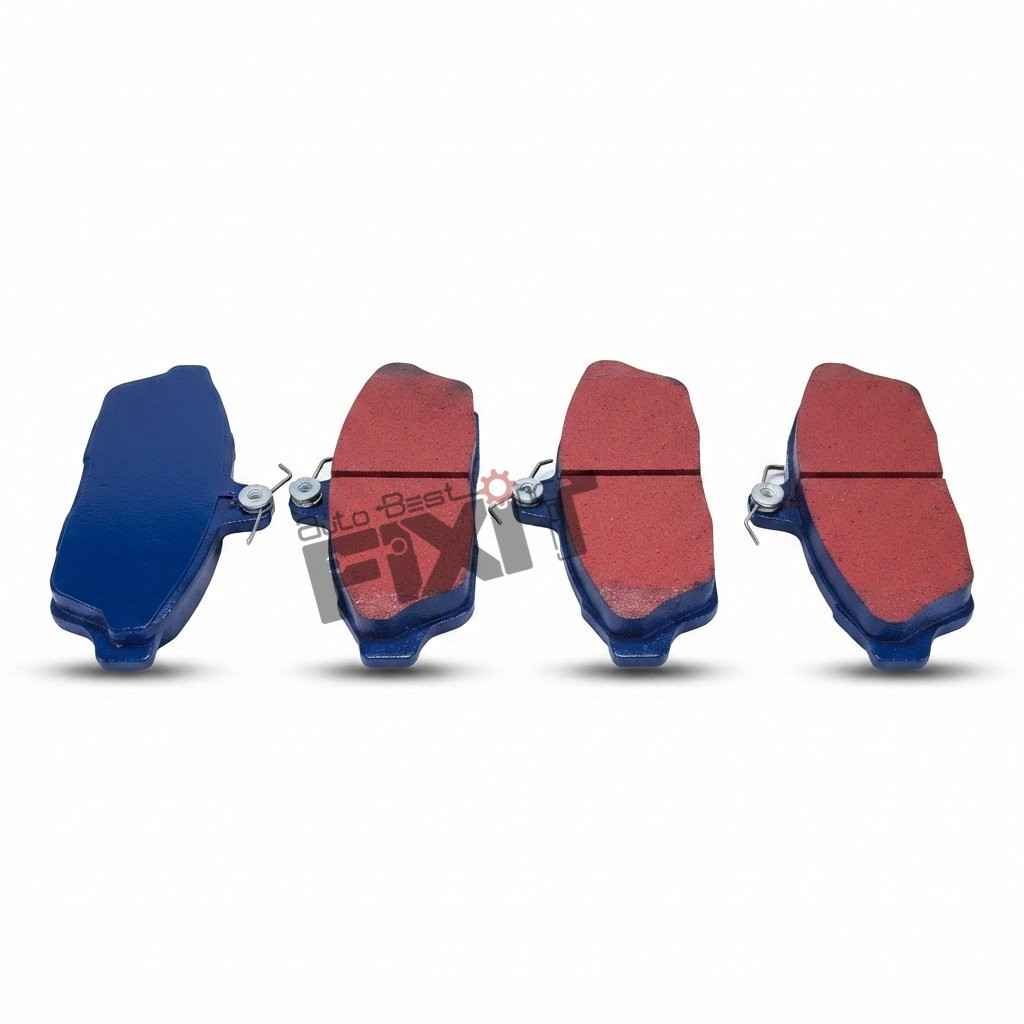

Bosch Mahindra Bolero & Bolero Pik-Up Front Brake Pads 1994-2026 F002H241688F8_1 – Alternate Angle View
Bosch Mahindra Bolero & Bolero Pik-Up Front Brake Pads 1994-2026 F002H241688F8_1
Bosch Mahindra Bolero & Bolero Pik-Up Front Brake Pads 1994-2026 F002H241688F8_1 – Alternate Angle View

Mahindra Bolero & Bolero Pik-Up Front Brake Pads | 1994-2026 | F002H241688F8_1 | Bosch

SKU F002H241688F8
Rs. 1,208.00 In Stock Add to cart Sold out
Notify when available
Shipping Calculated At Checkout
100% Original And Quality
GST Bill Included
Description

MAHINDRA BOLERO & BOLERO PIK-UP FRONT BRAKE PADS | 1994-2026 | F002H241688F8_1 | BOSCH

SKU: F002H241688F8_1

Get quiet, confident and reliable braking with this Bosch Front Brake Pads — Front Brake Pads for Mahindra Bolero, Mahindra Bolero Camper, Mahindra Bolero Pik-Up, Mahindra Maxi Truck, Mahindra Maxx, Mahindra Maxx Pikup City and more (1994-2026). Engineered to OEM specifications for exact fit, dependable performance and long service life, and built to handle Indian traffic, heat and dusty roads.

What Does This Part Do?
Brake pads are the friction material that presses against the brake disc when you apply the brakes. The friction created slows the rotating disc and brings your car to a stop. Pads are a wear item — their friction lining gets thinner with every stop and must be replaced before it reaches the metal backing plate.

When You Need This Part
Over time, this part wears out or gets damaged — leading to common issues like:

  • Squealing or squeaking noise when applying the brakes
  • Grinding metal-on-metal sound (pads fully worn)
  • Brake warning light on the instrument cluster
  • Longer stopping distances or a soft brake pedal
  • Visible pad lining thinner than 3 mm, or scoring on the Front Brake Disc

If your vehicle shows any of these symptoms, replacing the front brake pads is the permanent, safe fix.

How To Use This Product

  1. Confirm fitment for your model, variant and year in the table below
  2. Lift the car safely and remove the wheel
  3. Unbolt the caliper and remove the worn pads
  4. Push the caliper piston back slowly and check the disc surface
  5. Install the new pads with the supplied clips/shims and refit the caliper
  6. Top up brake fluid if required and pump the pedal until firm
  7. Bed-in the pads with gentle stops for the first 200 km

Why Choose BOSCH?
Bosch is one of the world's most trusted automotive component makers, supplying OEM-grade braking, clutch and chassis parts to leading carmakers. Every Bosch part is built with tight manufacturing tolerances and tested for consistent, safe performance.

Key Features

  • Low-dust, low-noise friction formulation
  • Stable friction level from cold starts to hot braking
  • Chamfers and slots to reduce squeal and vibration
  • OEM-matched shape and backing plate for exact fit
  • Long pad life with gentle wear on discs
  • Tested for Indian stop-and-go traffic conditions
  • Compatible with Diesel & Petrol variants listed below

Compatible Vehicles - MAHINDRA (2002-2026)

Model Engine Type Fuel Start Year End Year
BOLERO 1ST GEN 2.5L DI DX MT 2.5L MDI TC 3200 Diesel 2006 2011
BOLERO 1ST GEN 2.5L LX GLX SPORTZ VFD 2WD/4WD MT 2.5L XD3P Diesel 2006 2011
BOLERO 1ST GEN 2.5L MT 2.5L MDI TC 3200 Diesel 2006 2012
BOLERO 1ST GEN 2.5L GLX MT 2.5L MDI TC 3200 Diesel 2006 2011
BOLERO 1ST GEN 2.5L DX MT 2.5L MDI TC 3200 GEAR DRIVE Diesel 2007 2011
BOLERO 1ST GEN 2.5L PLUS MT 2.5L MDI TC 3200 Diesel 2007 2011
BOLERO 1ST GEN 2.5L DIZ PHII MT 2.5L MDI TC 3200 Diesel 2007 2011
BOLERO 1ST GEN 2.5L AC MT 2.5L MDI TC 3200 Diesel 2007 2011
BOLERO 1ST GEN 2.5L LX SLE MT 2.5L MDI TC 3200 Diesel 2007 2011
BOLERO 2ND GEN 2.5L ZLX MT 2.5L m2DiCR Diesel 2011 2016
BOLERO 2ND GEN 2.5L PLUS MT 2.5L MDI TC 3200 Diesel 2011 2016
BOLERO 2ND GEN 2.5L EX MT 2.5L m2DiCR Diesel 2011 2016
BOLERO 2ND GEN 2.5L LX MT 2.5L m2DiCR Diesel 2011 2016
BOLERO 2ND GEN 2.5L SLE MT 2.5L m2DiCR Diesel 2011 2016
BOLERO 2ND GEN 2.5L SLX MT 2.5L m2DiCR Diesel 2011 2016
BOLERO 2ND GEN 1.5L POWER+ ZLX MT 1.5L mHawk D70 Diesel 2016 2020
BOLERO 2ND GEN 1.5L POWER+ LX MT 1.5L mHawk D70 Diesel 2016 2020
BOLERO 2ND GEN 1.5L POWER+ SLE MT 1.5L mHawk D70 Diesel 2016 2020
BOLERO 2ND GEN 1.5L POWER+ SLX MT 1.5L mHawk D70 Diesel 2016 2020
BOLERO 2ND GEN F/L 1.5L B4 MT 1.5L mHawk75 Diesel 2019 2022
BOLERO 2ND GEN F/L 1.5L B2 MT 1.5L mHawk75 Diesel 2019 2022
BOLERO 2ND GEN F/L 1.5L B6 MT 1.5L mHawk75 Diesel 2020 2022
BOLERO 2ND GEN F/L 1.5L B6(O) MT 1.5L mHawk75 Diesel 2020 2022
BOLERO CAMPER 2.5L MT 2.5L MDI TC 3200 Diesel 2006 2010
BOLERO CAMPER 2.5L DX MT 2.5L MDI TC 3200 Diesel 2007 2010
BOLERO CAMPER 2.5L MT 2.5L MDI TC 3200 Diesel 2010 2013
BOLERO CAMPER F/L 2.5L GOLD VX & ZX MT 2.5L m2DiCR 4 CYLINDER Diesel 2019 2026
BOLERO PIK-UP 1ST GEN 2.5L MT 2.5L MDI TC 3200 Diesel 2010 2019
BOLERO PIK-UP 1ST GEN 2.5L MT 2.5L MSI 2500 CNG Petrol/CNG 2012 2019
BOLERO PIK-UP 2ND GEN 2.5L PIKUP FB EXTRA LONG 1.25T & 1.5T MT 2.5L m2DiCR Diesel 2019 2019
BOLERO PIK-UP 2ND GEN 2.5L PIKUP FB EXTRA LONG 1.25T,1.3T & 1.5T MT 2.5L m2DiCR Diesel 2019 2019
BOLERO PIK-UP 2ND GEN 2.5L PIKUP FB EXTRA LONG 1.7T MT 2.5L m2DiCR Diesel 2019 2019
BOLERO PIK-UP 2ND GEN 2.5L PIKUP FB EXTRA STRONG 1.3T & 1.5T MT 2.5L m2DiCR Diesel 2019 2019
BOLERO PIK-UP 2ND GEN 2.5L PIKUP FB EXTRA LONG MT 2.5L m2DiCR Diesel 2019 2026
BOLERO PIK-UP 2ND GEN 2.5L PIKUP FB EXTRA STRONG MT 2.5L m2DiCR Diesel 2019 2026
BOLERO PIK-UP 2ND GEN 2.5L PIKUP NFB 4WD MT 2.5L m2DiCR Diesel 2019 2026
BOLERO PIK-UP 2ND GEN 2.5L PIK UP MT 2.5L MSI Petrol/CNG 2019 2026
BOLERO PIK-UP 2ND GEN 2.5L PIKUP CITY 4WD MT 2.5L m2DiCR Diesel 2019 2026
MAXI TRUCK 2.5L 2.5L MSI 2500 CNG Petrol/CNG 2012 2026
MAXI TRUCK 2.5L 2.5L M2DICR Diesel 2013 2026
MAXI TRUCK 2.5L BMT PLUS DI TURBO 2.5L m2DiCR Turbo Charged Diesel 2019 2019
MAXI TRUCK 2.5L BMT PLUS UPCR 2.5L m2DiCR Turbo Charged Diesel 2019 2019
MAXI TRUCK 2.5L BMT PLUS (MS/PS/CBC) 2.5L m2DiCR Turbo Charged Diesel 2019 2026
MAXI TRUCK 2.5L BMT PLUS 2.5L MSI 4 cylinder Petrol/CNG 2019 2026
MAXX 2.5L FESTARA 2.5L MDI TC 3200 Diesel 2007 2011
MAXX PIKUP CITY 2.5L 1.5T VXI 2.5L m2Di Diesel 2022 2026
MAXX PIKUP CITY 2.5L 1.4T VXI 2.5L m2Di Diesel 2022 2026
MAXX PIKUP CITY 2.5L 1.3T VXI 2.5L m2Di Diesel 2022 2026
MAXX PIKUP CITY 2.5L 1.5T LX 2.5L m2Di Diesel 2022 2026
MAXX PIKUP CITY 2.5L 1.4T LX 2.5L m2Di Diesel 2022 2026
MAXX PIKUP CITY 2.5L 1.3T LX 2.5L m2Di Diesel 2022 2026
MAXX PIKUP CITY 2.5L 1.3T LX CBC 2.5L m2Di Diesel 2023 2026
MAXX PIKUP CITY 2.5L 1.4T LX CBC 2.5L m2Di Diesel 2023 2026
MAXX PIKUP CITY 2.5L 1.5T LX CBC 2.5L m2Di Diesel 2023 2026
MAXX PICK UP 2.5L 2.5L MDI TC 3200 Diesel 2005 2007
MAXX PICK UP 2.5L 2.5L MDI TC 3200 Diesel 2006 2009
MAXX PICK UP 2.5L 2.5L MDI TC 3200 (NGT) Diesel 2011 2013
MAXX PIKUP HEAVY DUTY 2.5L 2.0T VXI EXTRA LONG 2.5L m2Di Diesel 2022 2026
MAXX PIKUP HEAVY DUTY 2.5L 2.0T LX EXTRA LONG 2.5L m2Di Diesel 2022 2026
MAXX PIKUP HEAVY DUTY 2.5L 1.7T VXI EXTRA LONG 2.5L m2Di Diesel 2022 2026
MAXX PIKUP HEAVY DUTY 2.5L 1.7T EXTRA LX LONG 2.5L m2Di Diesel 2022 2026
MAXX PIKUP HEAVY DUTY 2.5L 1.3T VXI 2.5L m2Di Diesel 2022 2026
MAXX PIKUP HEAVY DUTY 2.5L 1.7T LX 2.5L m2Di Diesel 2022 2026
MAXX PIKUP HEAVY DUTY 2.5L 1.7T VXI 2.5L m2Di Diesel 2022 2026
MAXX PIKUP HEAVY DUTY 2.5L 1.3T LX 2.5L m2Di Diesel 2022 2026
MAXX PIKUP HEAVY DUTY 2.5L 1.7T LX CBC 2.5L m2Di Diesel 2023 2026
SCORPIO 1ST GEN 2.6L STD 2WD MT 2.6L CRDe (BF) Diesel 2002 2005
SCORPIO 1ST GEN 2.6L DX 2WD MT 2.6L CRDe (BF) Diesel 2002 2005
SCORPIO 1ST GEN 2.0L REV 116 2WD MT 2L F4R Petrol 2002 2005
SCORPIO 2ND GEN 2.2L VLX 2WD MT 2.2L mHawk (HA) Diesel 2009 2011
SCORPIO 2ND GEN 2.2L SLE 2WD MT 2.2L mHawk (HA) Diesel 2009 2011
THAR 1ST GEN 2.5L CRDe MT 2.5L NEF TCI CRDe Diesel 2010 2015
THAR 1ST GEN 2.5L MT 2.5L MDI TC 3200 Diesel 2010 2015
THAR 1ST GEN F/L 2.5L MT 2.5L NEF TCI CRDe Diesel 2015 2020

Compatible Vehicles - TATA (1994-2019)

Model Engine Type Fuel Start Year End Year
SUMO 2.0L MT 2L 483DL TC Diesel 1994 2002
SUMO 3.0L SE MT 3L 5.7 SGI Diesel 2001 2005
SUMO 3.0L SE+ MT 3L 4DLNA Diesel 2004 2007
SUMO 3.0L AMBULANCE MT 3L 4DLNA Diesel 2007 2011
SUMO 3.0L MT 3L 4DLNA Diesel 2011 2014
SUMO 2.0L AMBULANCE MT 2L IDI Diesel 2014 2019
SUMO GOLD 3.0L MT 3L 4SP TC Diesel 2012 2013
SUMO GOLD 3.0L MT 3L 4SP CR10 Diesel 2012 2013
SUMO SPACIO 2.0L MT 2L 483 DLNA Diesel 2000 2007
SUMO SPACIO 3.0L MT 3L 4SP NA Diesel 2000 2007
SUMO SPACIO 3.0L MT 3L 4SP N Diesel 2007 2011
SUMO VICTA 3.0L MT 3L 4DLNA Diesel 2004 2007
SUMO VICTA 2.0L MT 2L 483 DLNA Diesel 2007 2011
SUMO VICTA 3.0L MT 3L 4SPTC Diesel 2007 2011
SUMO VICTA 3.0L MT 3L 4DLNA Diesel 2007 2011
SUMO VICTA 3.0L MT 3L 4SPTC Diesel 2007 2011

Installation Notes

  • Replace pads on both wheels of the same axle together
  • Inspect disc thickness and surface when changing pads
  • Check the Brake Fluid level after pushing pistons back
  • Never apply grease to the friction surface
  • Follow manufacturer torque specifications
SKU / Part No. F002H241688F8
Brand BOSCH
Seller BKS Motors
Length 18 cm
Width 12 cm
Height 6 cm
Weight 1.0 kg
Manufacturer Bosch Limited
Country of Origin INDIA
